You know your kitchen needs proper water, drain, and electrical connections for a dishwasher. Now you want to understand what actually happens during professional installation and why getting it done right matters so much.
Here’s the complete dishwasher installation process that ensures your new appliance works properly without leaks or problems.
Removing the Old Dishwasher and Preparing Connections
- Shut off water and power before touching anything. Turn off the hot water valve under the sink. Switch off the circuit breaker for the dishwasher.
- Disconnect and remove the old dishwasher carefully. Open the dishwasher door and remove the screws attaching it to the underside of the countertop. These screws are usually in the top corners of the door frame. Disconnect the water supply line, drain hose, and electrical connection.
- Inspect the space for damage or issues. Check the floor for water damage, rot, or mold. Examine the cabinet sides for damage. Test the shut off valve by turning it on and off to ensure it works without leaking. Verify the electrical outlet or junction box is in good condition.
- Clean the installation area thoroughly. Remove any debris, old food particles, or gunk that accumulated under the old dishwasher. Clean surfaces ensure proper fit and prevent odors.
- Prepare new connections if needed. If the water supply line is old or damaged, replace it with a new braided stainless steel line. Check that the drain connection under the sink is clear and positioned correctly. Verify the electrical connection meets code requirements for the new dishwasher model.
- Adjust leveling legs on the new dishwasher. Before sliding it into place, adjust the front leveling legs so the dishwasher will sit level in the opening. Getting close to level before installation makes final adjustments much easier.
Installing and Testing the New Dishwasher
- Slide the new dishwasher into position carefully. Feed the water supply line, drain hose, and electrical cable through the opening as you slide the unit in. Don’t pinch or kink any lines. Stop when the dishwasher is mostly in but still accessible for connections.
- Connect the water supply line securely. Attach the water line to the dishwasher inlet valve. Hand tighten first, then use a wrench for a quarter turn more. Over tightening can crack plastic fittings. Turn the water on at the shut off valve and check immediately for leaks.
- Attach the drain hose properly. Connect the drain hose to the dishwasher outlet and secure it with the provided clamp. Route the hose so it loops up higher than the sink drain connection before going down to connect under the sink.
- Make the electrical connection safely. If hardwiring, connect wires according to the dishwasher’s wiring diagram, matching colors correctly. Use wire nuts rated for the connection. If plugging in, ensure the outlet is GFCI protected as required by code.
- Level the dishwasher in all directions. Use a level placed on the top front edge and across the sides. Adjust the leveling legs until the dishwasher is perfectly level front to back and side to side. A level dishwasher drains properly, the door operates correctly, and it won’t vibrate excessively during operation.
- Secure the dishwasher to the countertop. Drive screws through the mounting tabs into the underside of the counter. The dishwasher should be firmly attached but not pulled so tight that the unit is stressed or distorted.
- Run a test cycle completely. Don’t just turn it on briefly. Run a full wash cycle while watching for leaks from all connections. Check under the sink during filling and draining. Listen for unusual noises. Verify it fills properly, washes, drains completely, and dries correctly.
- Make final adjustments as needed. If the door doesn’t close smoothly or the unit vibrates, make small adjustments to leveling. Tighten any connections that show minor seepage.

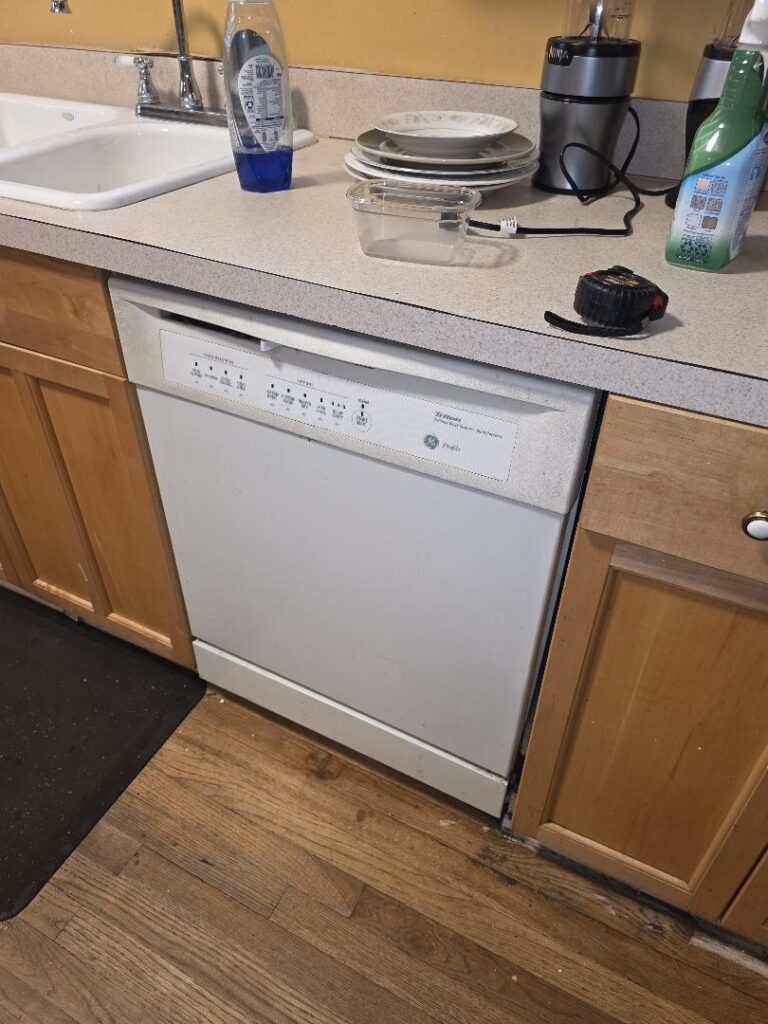

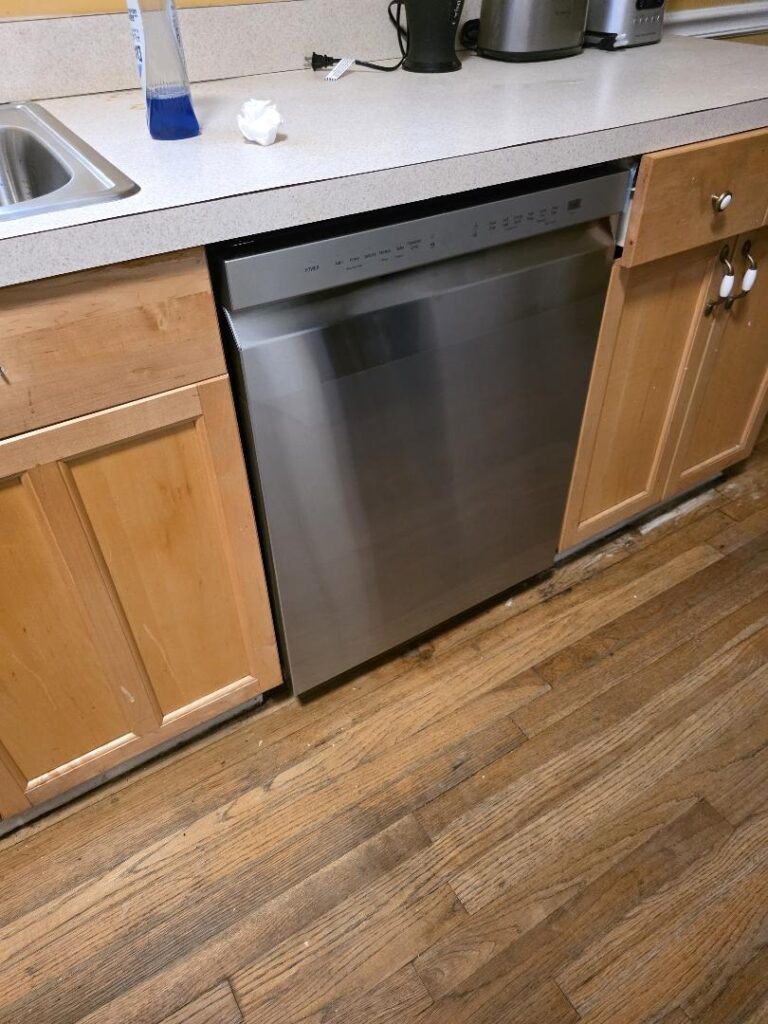

A Handyman Before vs After
Get Your Dishwasher Installed
Contact Handyman Harry today at 404-482-1480 or visit handymanharryatl.com for professional dishwasher installation. We’ll get it done right so you can enjoy your new appliance immediately.
